Horizontal Slurry Pump Factory

Horizontal Slurry Pump Factory

MAH Horizontal slurry pump is a centrifugal slurry pump. Its working principle and design principle are based on the centrifugal pump.Compared to traditional clear water pumps, slurry pumps need to handle high concentrations of solid particles and high viscosity liquids, so they are usually designed with greater wear resistance and higher power output capabilities.

A horizontal slurry pump is a centrifugal pump designed to handle high-viscosity, heavy-duty, abrasive slurries. Unlike standard centrifugal pumps, which are mainly used to transport clean liquids, the design of horizontal slurry pumps takes into account the special properties of slurry fluids, including the presence of solid particles and abrasiveness. Therefore, horizontal slurry pumps use more rugged and wear-resistant materials, such as cast iron, corrosion-resistant alloys or rubber linings, to ensure the durability and long-term stable operation of the pump.

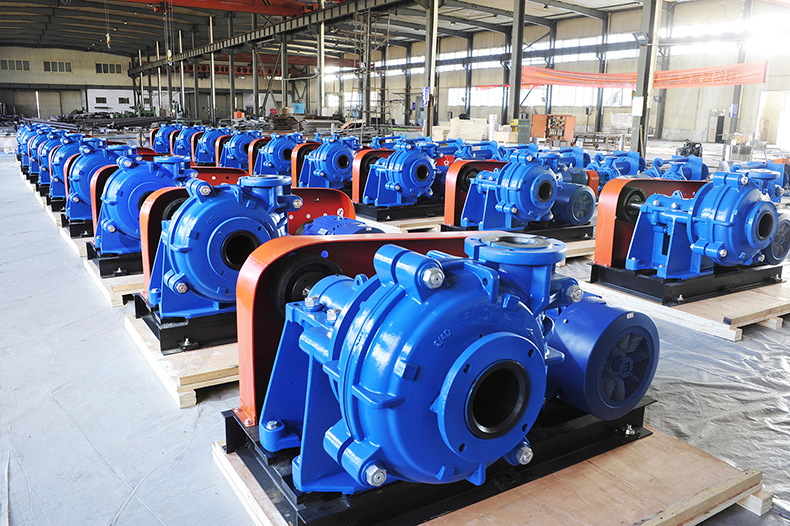

Horizontal Slurry Pump.png

Applications:

1、Metallurgical plants and coal plants: In the metallurgical process, slurry pumps are responsible for the transportation of slurries. These slurries usually contain a large amount of solid particles and need to be transported continuously in harsh environments. MAH horizontal slurry pumps have strong wear resistance and can handle these high-viscosity, high-solid content slurries. In addition, it is widely used in coal plants to transport coal slime and help coal sorting and solid-liquid separation during cleaning.

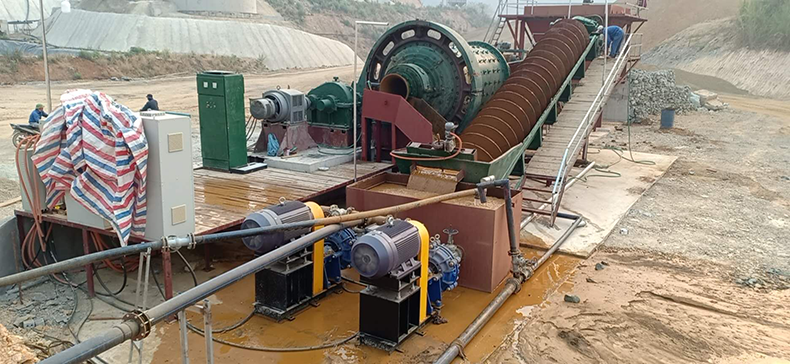

Horizontal Slurry Pump factory.png

2、River dredging and silt removal: MAH horizontal slurry pumps have important applications in river dredging and water cleaning, especially for extracting silt, gravel and other sediments from the riverbed. Its strong pumping capacity and wear resistance ensure that the pump can work efficiently in an environment with a large amount of solid particles while avoiding blockage and equipment damage.

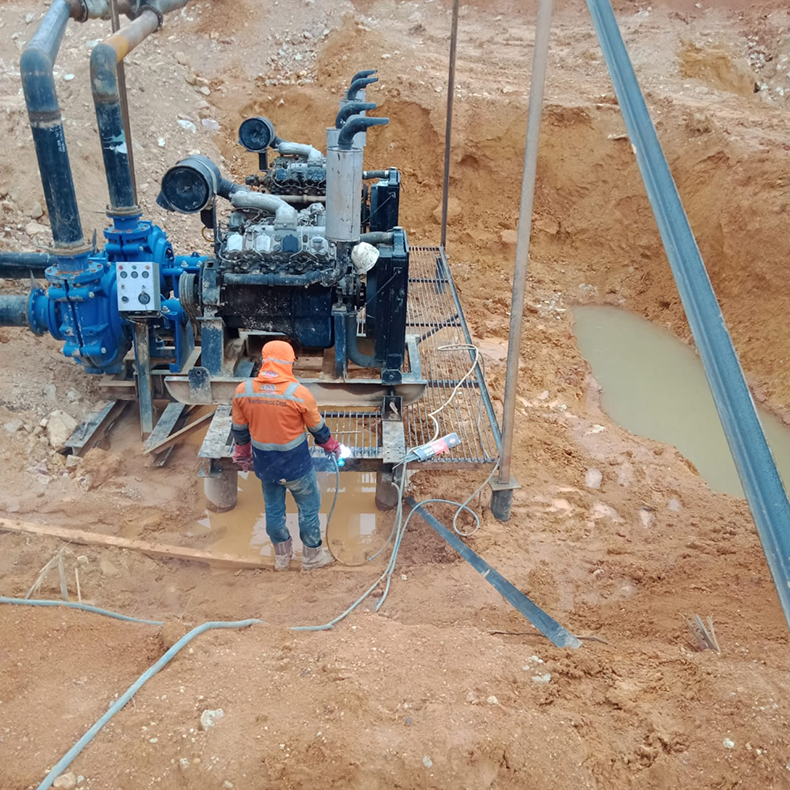

MAH horizontal slurry pumps.png

3、Slurry transportation in the chemical industry: In the chemical industry, slurry pumps are not only used to handle slurries, but are also widely used to transport slurries containing crystals or corrosive chemicals. Especially in the transportation of some highly corrosive liquids, the corrosion-resistant materials of the MAH horizontal slurry pump enable it to operate stably for a long time in harsh environments.

4、Hydrothermal desulfurization system: MAH horizontal slurry pumps are widely used in hydrothermal desulfurization slurry circulation systems, especially in the flue gas desulfurization process of thermal power plants. In this system, the slurry pump is responsible for transporting the desulfurization slurry from the reactor to the desulfurization tower to remove sulfur from the flue gas through chemical reactions. Since the desulfurization slurry has certain corrosiveness and crystallinity, the high wear resistance and corrosion resistance of the MAH horizontal slurry pump are essential.

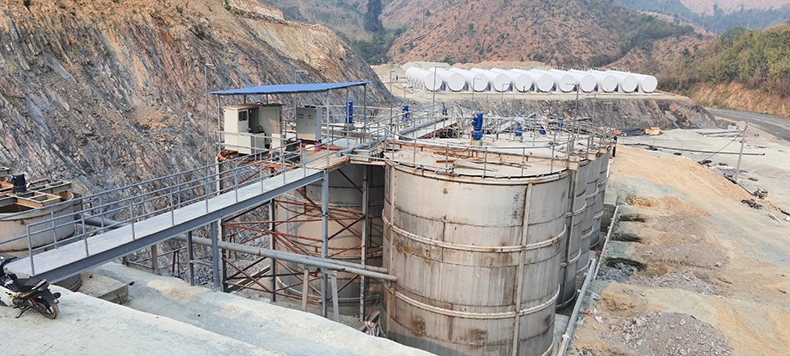

Hydrothermal desulfurization system.png

5、Seawater desanding and sand dredging operations: In the field of seawater desanding, MAH horizontal slurry pumps have gradually gained wide recognition. Especially in sea sand mining and river sand dredging operations, slurry pumps can effectively transport seawater and river water with large particles of sand and gravel, ensuring the continuity and efficiency of sand dredging operations. This application can not only improve the recovery rate of sand and gravel resources, but also prevent siltation problems in rivers and ports.

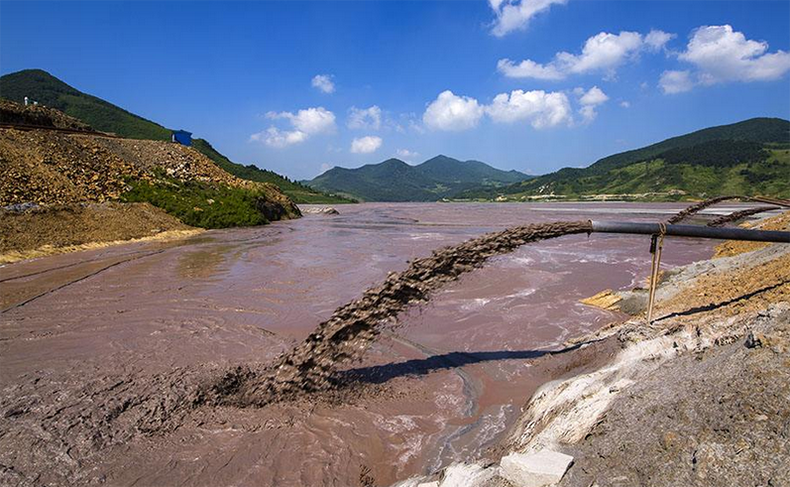

MAH horizontal slurry pump.png

Horizontal slurry pump performance table as below:

Performance Of DP-MAH

Type

Max.power

Capacity

Head

Impeller

Max. particle size

kw

(m³/h)

(m)

Quantity of vanes

(mm)

1.5x1B-MAH

15

3.6-21.6

6-65

5

14

1.5x2B-MAH

15

7.2-48.6

5-62

5

19

2x3C-MAH

30

21.6-88.56

15-40

5

21

4x3C-MAH

30

28.8-158.4

7-53

5

28

6x4D-MAH

60

72-331.2

11-64

5

44

8x6E-MAH

120

126-720

6-62

5

63

10x8ST-MAH

560

216-1051.2

9-64

5

76

12x10ST-MAH

560

316.8-1620

10-66

5

86

14x12ST-MAH

560

504-2455.2

10-75

5

90

Horizontal Slurry Pump for Sale

Tianjin Kairun offers customization options to meet the unique needs of our customers. If you are choosing your axial flow pump manufacturers, welcome to contact us at catherine@kairunpump.com.

When considering the purchase of the pump, it's crucial to select a manufacturer with a proven track record of quality and reliability. Tianjin Kairun has established itself as a reputable supplier in the pump industry, offering a range of axial flow pump solutions suitable for various applications.

One of the key advantages of working with Tianjin Kairun is their ability to provide customized solutions. This flexibility allows customers to obtain pumps that are precisely tailored to their specific operational requirements, potentially improving efficiency and reducing long-term costs.

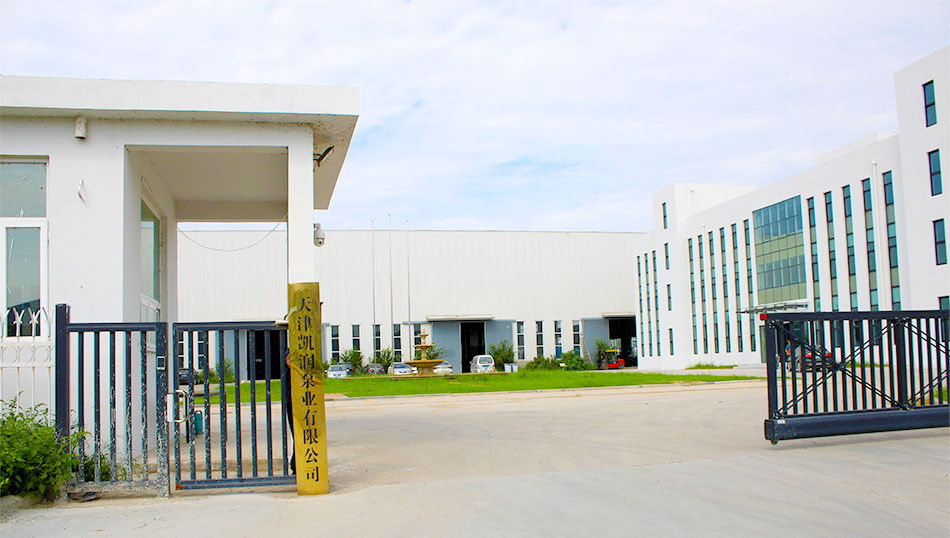

Tianjin Kairun factory.png

Company Profile

Tianjin Kairun Pump Industry Co., Ltd. was established many years ago. It is an enterprise focusing on the research and development, production and customization services of pump equipment. The company is committed to providing high-quality pump products and related supporting facilities for all walks of life, which are widely used in water treatment, mining, environmental protection, petrochemical, electricity and other fields. Kairun Pump Industry not only has independent research and development and design capabilities, but also has complete production and transformation capabilities, and can provide customized services according to customer needs.

Kairun Pump Industry's main products include submersible axial (mixed) flow pumps, vertical axial flow pumps, submersible sewage pumps, submersible slurry pumps, mining special pumps, vertical long-axis pumps, submersible mixers and other types of water pumps, which meet the needs of various industrial applications. The company also provides related system supporting facilities such as pipe fittings, valves, electric control cabinets, power equipment, etc., which can provide customers with one-stop solutions to ensure the efficient and stable operation of products.

The technical team of Kairun Pump Industry is composed of experienced engineers with strong R&D capabilities and technical reserves, and can independently develop, design and produce new products. In addition, the company also has the ability to customize and develop non-standard products, and can provide personalized and professional pump products and system solutions according to the specific needs of customers.

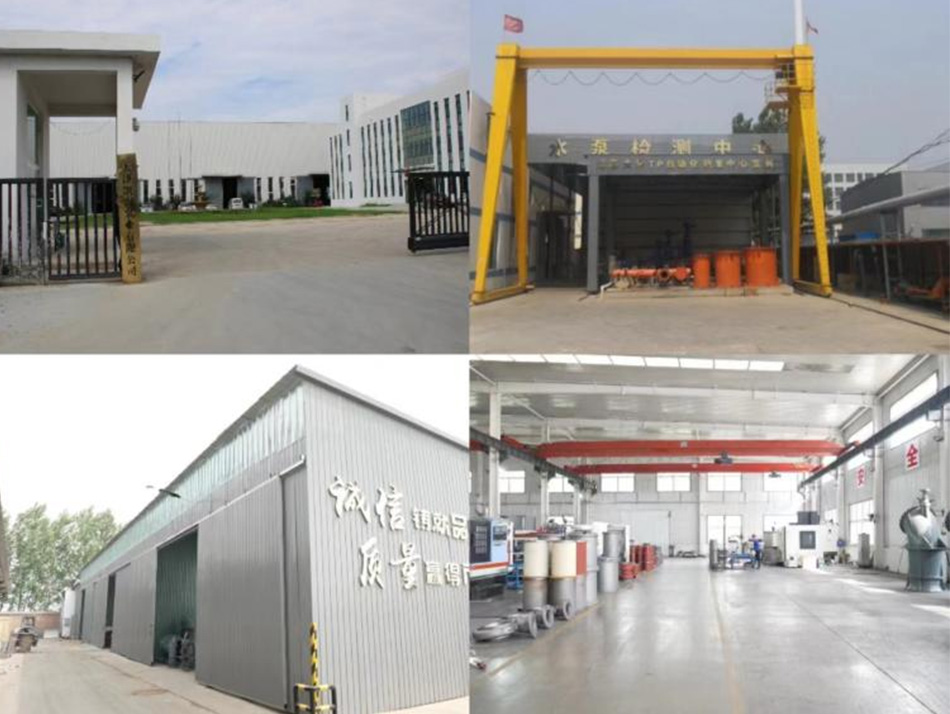

Tianjin Kairun Pump Industry Co., Ltd.png

Certifications

Our pumps are certified to meet relevant industry standards, ensuring their quality, safety, and performance.


FAQ

1.What is the lead time for ordering horizontal slurry pump?

Within 15 workdays, Off Season Lead Time: within 15 workdays:

2.Can you provide installation and commissioning services?

Yes,we can provide installation and commissioning services

3.What is the warranty period for your pumps?

1 Year warranty.

4.How do I request a quote for a customized horizontal slurry pump?
